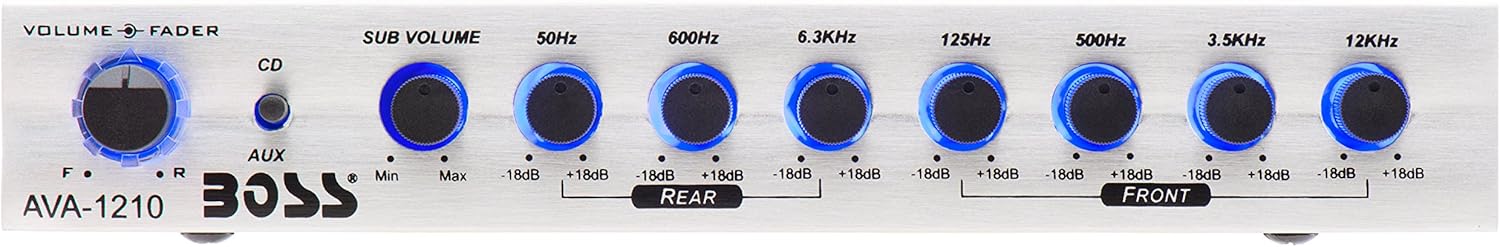

Review BOSS Audio Systems AVA1210 7 Band Pre-Amp Car Equalizer with Gold-Plated Front Rear and Subwoofer Outputs
So you can check out the other reviews Blасk Frіdау - 60% оƒƒ BOSS Audio Systems AVA1210 7 Band Pre-Amp Car Equalizer with Gold-Plated Front Rear and Subwoofer Outputs at Amazon.com
only with $
- Front Adjustable EQ Band Frequencies: 125 Hz, 500 Hz, 3.5 kHz, 12 kHz
- Rear Adjustable EQ Bands Frequencies: 50 Hz, 600 Hz, 6.3 kHz
- Switchable Subwoofer Filter 32 Hz – 128 Hz, Frequency Response 10 Hz – 15 kHz
- Inputs: Dual 2 Channel Source. Outputs: Front, Rear & Sub. Fader Control
- Gain + / - 18 dB, Maximum Input Voltage 15 Volts, Maximum Output Voltage 8 Volts
- Signal to Noise Ratio > 110 dB, Channel Separation 20 dB, Total Harmonic Distortion 0.050
- Dimensions: Depth 4.6” x Width 7” x Height 1”
Product Description
View larger
View larger
Installation
Set your source volume at a position between 6 o’clock and 9 o’clock, and leave it at this setting. Always use the AVA1210 volume control as a master main volume control. It has better electronics, higher signal to noise ratio and is more linear than any source unit volume control available. If engine noise is audible, check the ground connection on all units and in the audio system.
Features
- Volume control with up to 8 volts RMS of output
- Seven band equalizer with 18 dB boost/Cut
- Specific bandwidth for each band
- Low noise BI-FET op-amp design yields minimum distortion
- On-board 30 volt BI-Polar switching power supply
- Subwoofer outputs and level controls
- Subwoofer frequency selection switch (32Hz/64Hz/128Hz)
- Input selector for AUX or CD
- Universal half-DIN chassis for ease of installation
- Gold plated RCA input/output connectors
- 20 dB headroom eliminates signal overload
- Blue light illumination
Specifications
- Frequency bands: Front channel – 125Hz, 500Hz, 3.5kHz, 12Khz / Rear channel – 50Hz, 600Hz, 6.3kHz
- Boost/Cut: +/-18 dB
- Signal to noise ratio: 110 dB ref 1 volt input
- Frequency response: 1Hz – 15kHz, +/-1 dB
- Maximum output voltage: 8 volts RMS
- Total harmonic distortion: 0.05%
- Input sensitivity: 150mV
- Headroom: 20 dB
- Input impedance: 10k Ohms
- Stereo separation: 82 dB/1kHz
- Operating voltage: 11-15 volts negative ground
- Output impedance: 50k Ohms
- Dimensions: 1” x 7” x 4-9/16” / 27.5mm x 178mm x 115mm
----------------------------
